| Door Thickness |
1 3/8" to 2 1/2" |

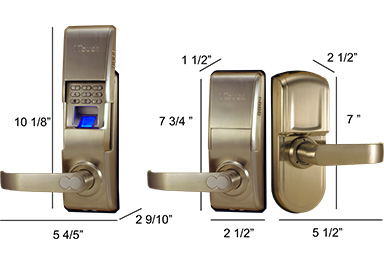

| Outside Dimensions (Cover Down) |
7 3/4" x 2 1/2" x 1 1/2" (not including handle) |
| Outside Dimensions (Cover Up) |
10 1/8" x 5 4/5" x 2 9/10" (including handle) |
| Inside Dimensions (back lock body) |
7" x 5 1/2" x 2 1/2" (including handle) |
| Unlocking Methods |
Fingerprint, Code and Mechanical Key |
| Fingerprint User Capacity |
36 Standard / 75 High Capacity model (2 templates) |
| Resolution |
560 dpi |
| Anti static Voltage |
>15000v |
| Working Temperature |
-4°F / 140°F |
| Password Capacity |
78 (minus fingerprint users) |
| Password Length |
8 bytes |
